Project / Americas Thermal Power Plant
Americas Thermal Power Plant
JURUN supplied alloy steel boiler and main steam piping for a thermal power plant in Central/North America — 3,300 tons in Phase 1 of a 12,500-ton program. Material spanned creep-resistant grades T1, T1a, T2, T12, T22, T91, A210A1, and 14MoV63.
What we supplied
Americas Thermal Power Plant
Central / North America · November 2024 – June 2025

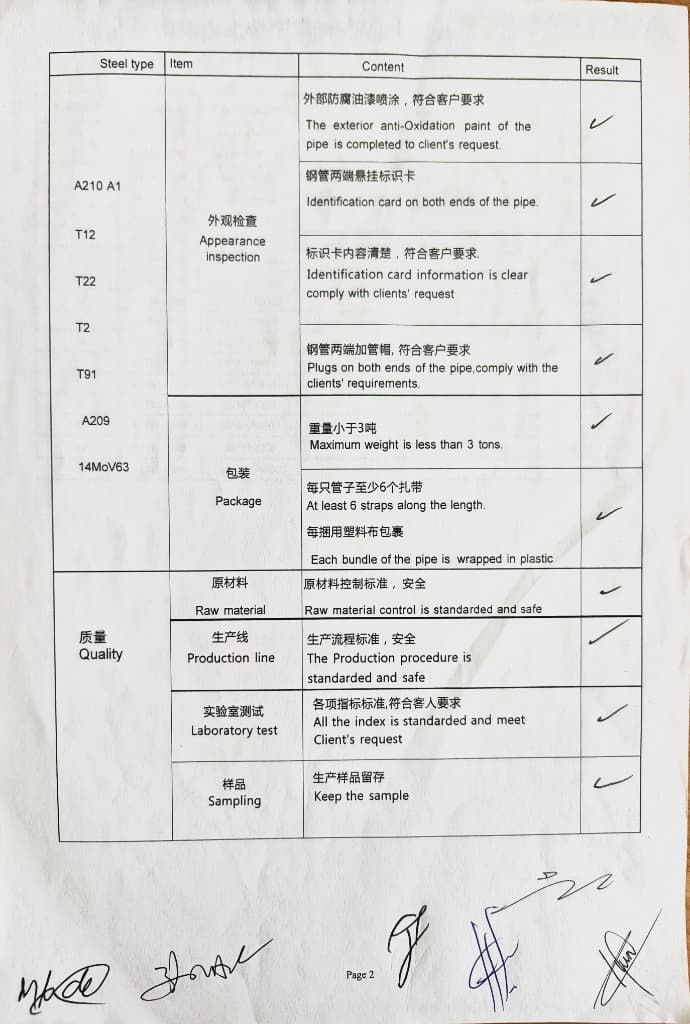

For a thermal power plant in Central/North America, JURUN supplied the boiler core piping and main steam line over an eight-month program (November 2024 – June 2025). Phase 1 delivered approximately 3,300 tons against a total contract of 12,500 tons, covering creep-resistant alloy steel grades T1, T1a, T2, T12, T22, T91, A210A1, and 14MoV63, certified to ASTM A209, ASTM A210A1, ASTM A213/A213M, SA-355/SA-213M, and EN 10216-2. The scope ranged from small superheater and reheater tubes (from 25 mm OD) up to heavy headers and main steam pipe (up to 377 mm OD), each lot fully traceable by heat number. Every shipment passed JURUN’s inspection plan: exterior anti-oxidation paint, identification cards and protective plugs on both pipe ends, bundles kept under 3 tons with at least six straps and plastic wrapping, plus controlled raw material, production, laboratory testing, and sample retention.
- Scope
- Boiler core piping & main steam line
- Material grades
- T1 · T1a · T2 · T12 · T22 · T91 · A210A1 · 14MoV63
- Phase 1 quantity
- ≈ 3,300 tons
- Total contract
- ≈ 12,500 tons
- Size range
- Ø25 – Ø377 mm · 6,000 / 9,000 / 9,600 mm lengths
- Timeline
- Nov 2024 – Jun 2025
- Standards
- ASTM A209 · ASTM A210A1 · ASTM A213/A213M · SA-355 / SA-213M · EN 10216-2

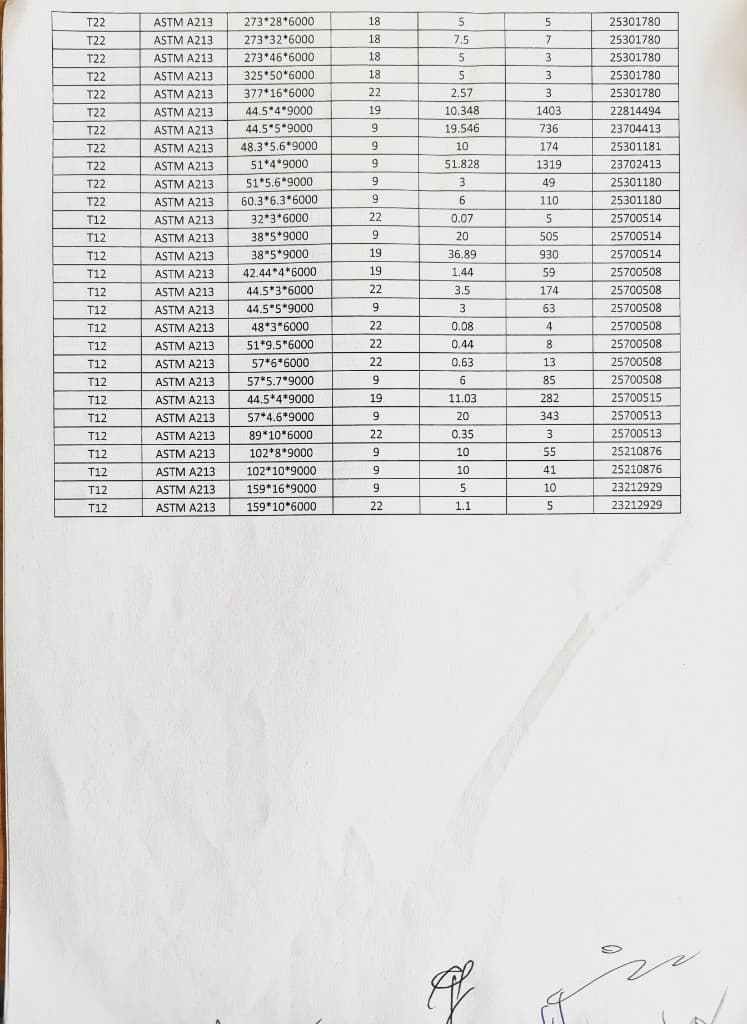

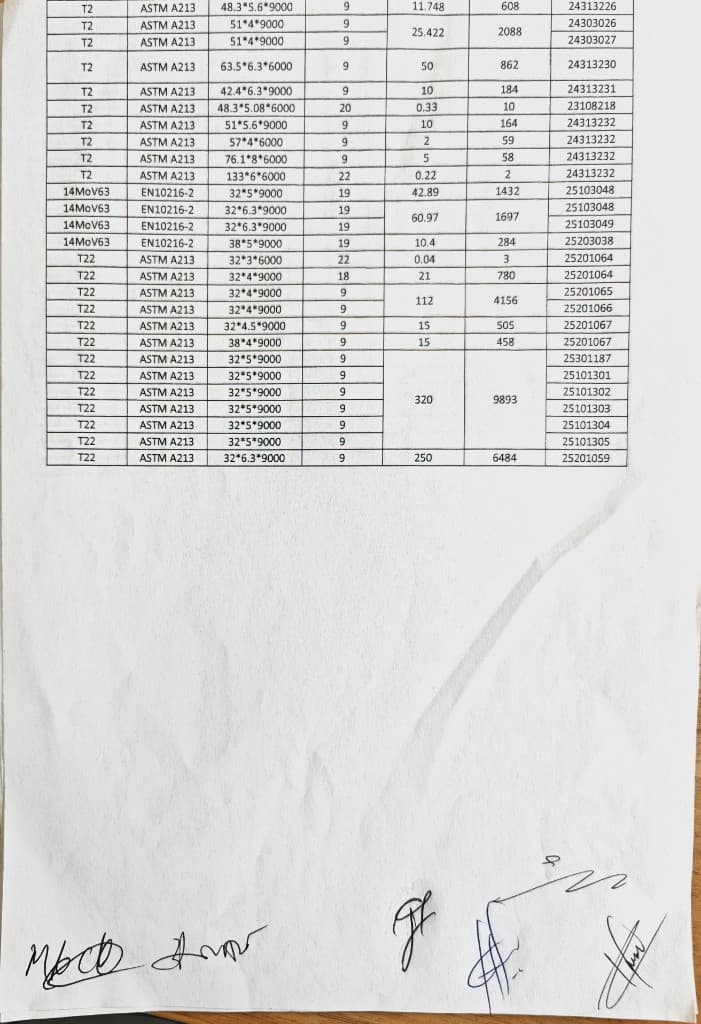

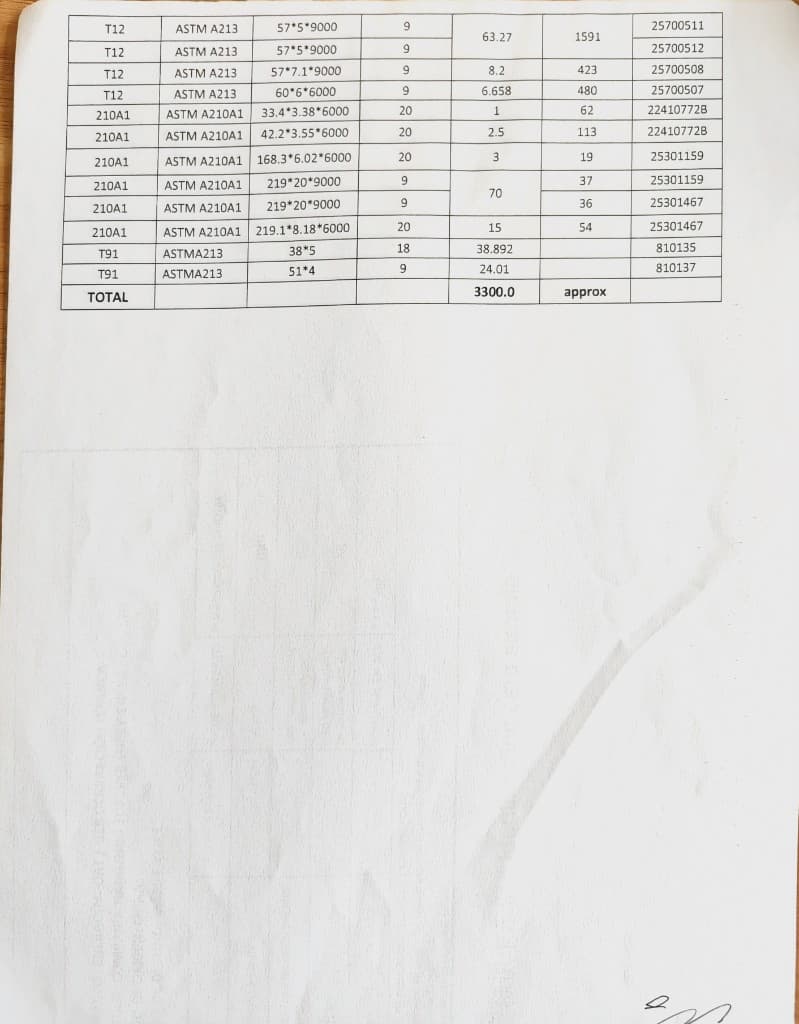

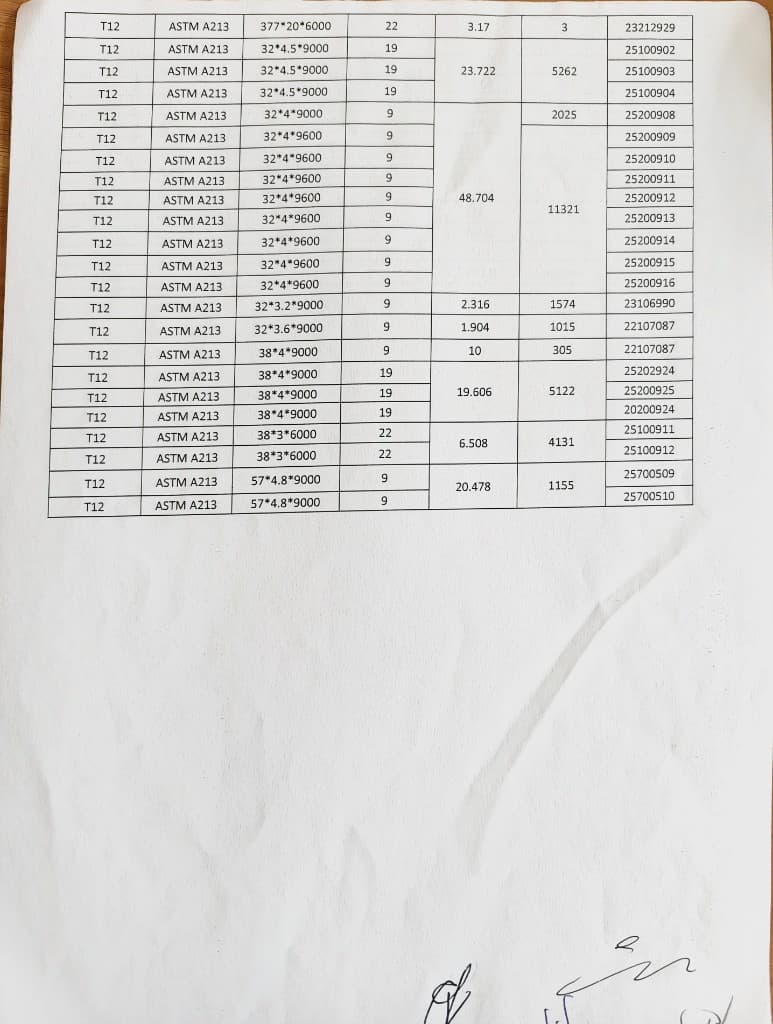

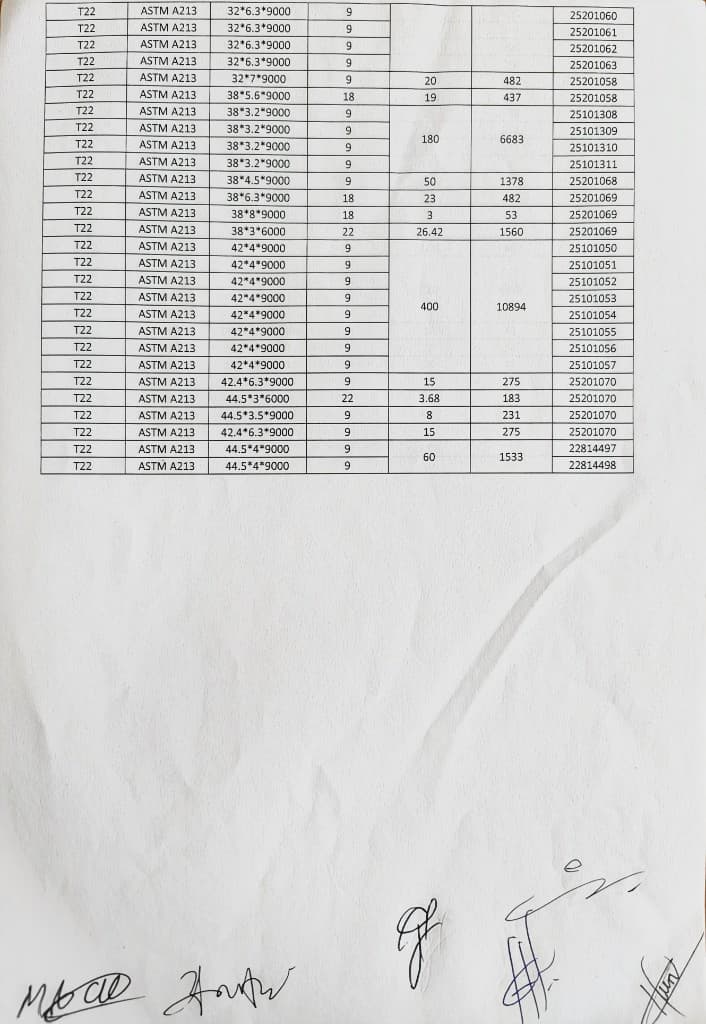

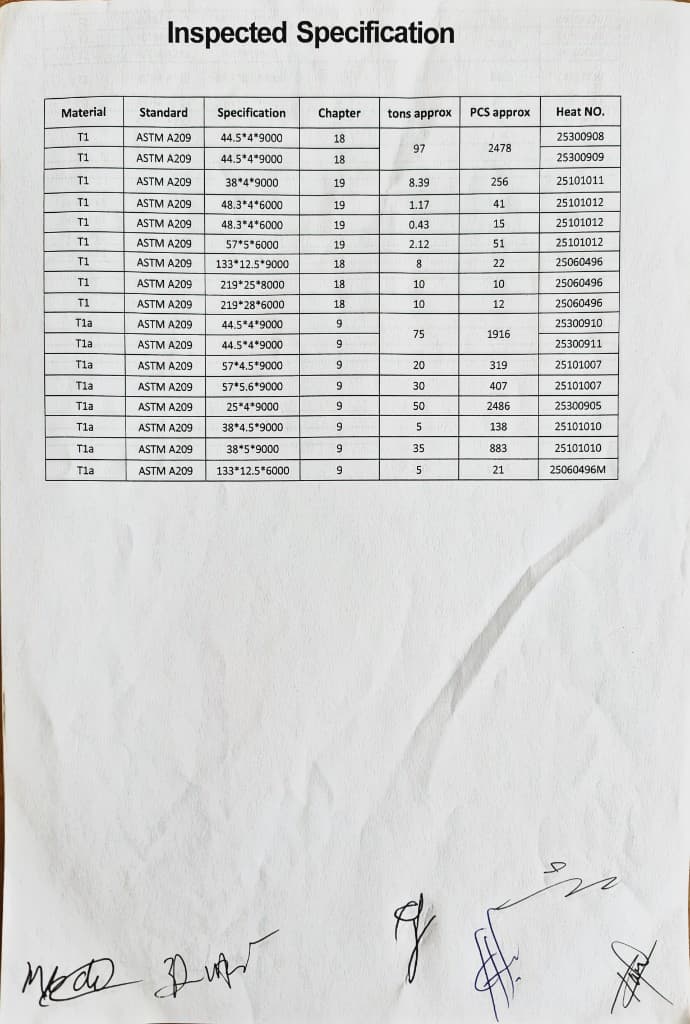

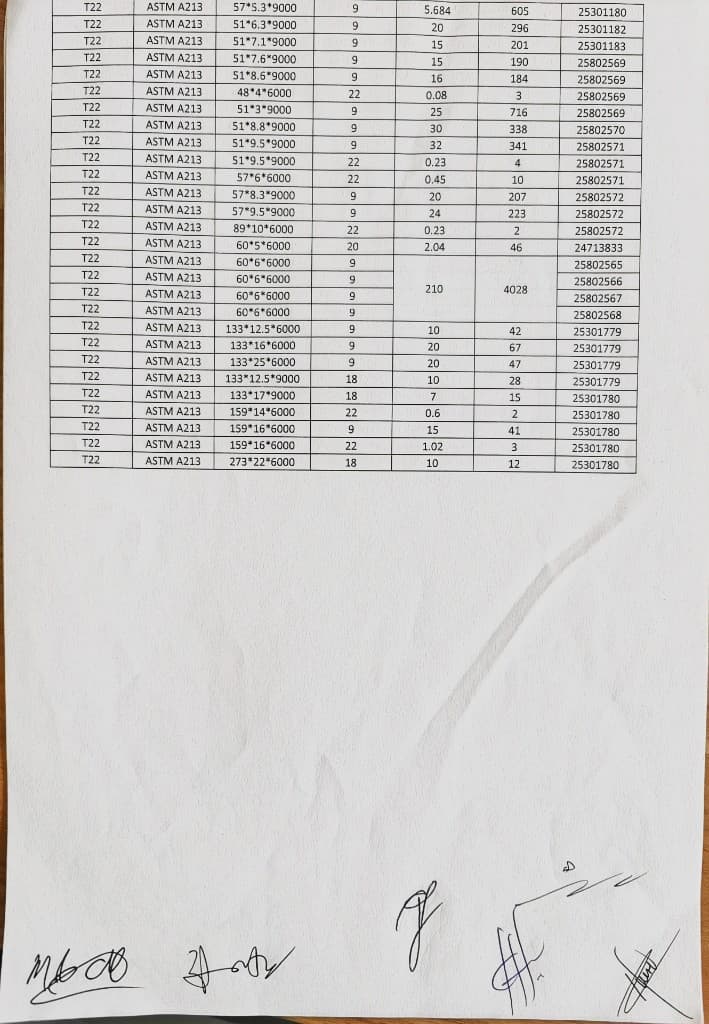

From the project file
